L-curve criterion¶
This page shows how to use the L-curve criterion to find the regularization parameter in the case of the example ill-posed problem.
The basic theory of the L-curve criterion is described in this page.
Definition of example inverse problem¶
As a famous ill-posed linear equation, Fredholm integral equation is often used:
Here we think of the following situation as the above equation form:
And, the true solution \(x_\text{true}(t)\) is assumed as follows:
[1]:
import numpy as np
import ultraplot as uplt
from rich import print as rprint
from scipy.sparse import diags_array
from cherab.inversion import SVD, Lcurve
from cherab.inversion.tools import parse_scientific_notation
Firstly, let us code the \(K(s, t)\) and \(x_\text{true}(t)\) as a function.
[2]:
def kernel(s: np.ndarray, t: np.ndarray) -> np.ndarray:
"""Kernel of Fredholm integral equation of the first kind."""
u = np.pi * (np.sin(s) + np.sin(t))
if u == 0:
return np.cos(s) + np.cos(t)
else:
return (np.cos(s) + np.cos(t)) * (np.sin(u) / u) ** 2
def x_t_func(t: np.ndarray) -> np.ndarray:
"""Define the function x_true(t)"""
return 2.0 * np.exp(-6.0 * (t - 0.8) ** 2) + np.exp(-2.0 * (t + 0.5) ** 2)
Discretization of the equation¶
When discretizing the integral equation \(\eqref{eq:fredholm}\) using the trapezoidal integral approximation, the following linear equation is obtained:
where \(\mathbf{K}\in\mathbb{R}^{M\times N}\) is the discretized kernel matrix, \(\mathbf{x}\in\mathbb{R}^N\) is the discretized solution vector and \(\mathbf{b}\in\mathbb{R}^M\) is the discretized data vector.
\(N\) and \(M\) are the number of discretization points of \(t\) and \(s\), respectively. Here we set \(N=M=64\) and generate points evenly spaced in \([-\pi/2, \pi/2]\). \(x_\mathrm{true}(t)\) discretized on these points yields the true solution vector \(\mathbf{x}_\mathrm{true}\).
[3]:
# discretize s, t
s = np.linspace(-np.pi * 0.5, np.pi * 0.5, num=64, endpoint=True)
t = np.linspace(-np.pi * 0.5, np.pi * 0.5, num=64, endpoint=True)
# vectorize solution
x_t = x_t_func(t)
# discretize kernel
k_mat = np.zeros((s.size, t.size))
k_mat = np.array([[kernel(i, j) for j in t] for i in s])
# trapezoidal rule
k_mat[:, 0] *= 0.5
k_mat[:, -1] *= 0.5
k_mat *= t[1] - t[0]
print(f"{k_mat.shape = }")
print(f"{x_t.shape = }")
print(f"condition number of K is {np.linalg.cond(k_mat):.4g}")
k_mat.shape = (64, 64)
x_t.shape = (64,)
condition number of K is 2.446e+18
The given data \(\mathbf{b}\) is generated by adding white noise \(\mathbf{e}\) to the true data \(\bar{\mathbf{b}} = \mathbf{K}\mathbf{x}_\mathrm{true}\), that is,
The noise variance is set to \(10^{-4}\).
[4]:
b_bar = k_mat @ x_t
rng = np.random.default_rng()
noise = rng.normal(0, 1.0e-4, b_bar.size)
b = b_bar + noise
Solve the inverse problem¶
The solution of the ill-posed linear equation is obtained with the regularization procedure:
where \(\mathbf{H}\) is the regularization matrix. Here we set \(\mathbf{H} = \mathbf{D_2}^\mathsf{T}\mathbf{D_2}\), where \(\mathbf{D_2}\) is the second-order difference matrix.
[5]:
dmat = diags_array([1, -2, 1], offsets=[-1, 0, 1], shape=(t.size, t.size), dtype=float).tocsr()
print(f"{dmat.shape = }")
dmat.shape = (64, 64)
Then we create SVD solver object.
Let us solve the inverse problem using the L-curve criterion to find the optimal regularization parameter.
message: ['requested number of basinhopping iterations completed successfully'] success: True fun: -239.55660220574447 x: [-4.966e+00] nit: 100 minimization_failures: 0 nfev: 2486 njev: 1243 lowest_optimization_result: message: CONVERGENCE: RELATIVE REDUCTION OF F <= FACTR*EPSMCH success: True status: 0 fun: -239.55660220574447 x: [-4.966e+00] nit: 4 jac: [ 6.565e-04] nfev: 34 njev: 17 hess_inv: <1x1 LbfgsInvHessProduct with dtype=float64>
Evaluate the L-curve criterion¶
Next we evaluate the solution obtained by the L-curve criterion
Plot L-curve¶
[8]:
fig, ax = uplt.subplots()
ax = lcurve.plot_L_curve(axes=ax, scatter_plot=7)
ax.autoscale(axis="both", tight=True)
ax.format(
xformatter="log",
yformatter="log",
)
The L-curve shown above is limited to the range of \(\lambda\) from \(\sigma_0^2\) to \(\sigma_{r}^2\) and it is enough to find the corner of the L-curve in this range.

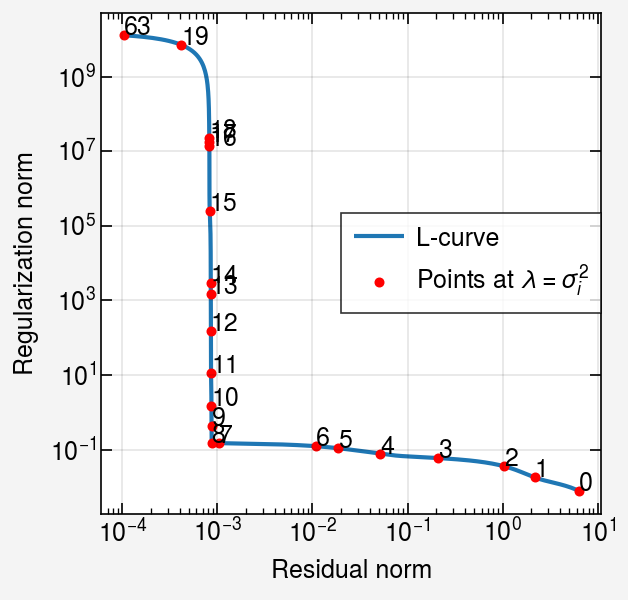

The below plot shows why it is enough by plotting points of \(\lambda = \sigma_i^2\) on the L-curve, where \(\sigma_i\) is the \(i\)-th singular value and \(i\) is indicated by the annotation.
[9]:
fig, ax = uplt.subplots()
ax = lcurve.plot_L_curve(axes=ax, plot_lambda_opt=False)
hline = ax.get_lines()[0]
indices = list(range(0, 20)) + [svd.s.size - 1]
sigmas = svd.s[indices]
residuals = [svd.residual_norm(beta) for beta in sigmas**2]
regularizations = [svd.regularization_norm(beta) for beta in sigmas**2]
hscatter = ax.scatter(residuals, regularizations, color="red", marker=".")
ax.legend([hline, hscatter], ["L-curve", "Points at $\\lambda = \\sigma_i^2$"], ncols=1)
for i, ind in enumerate(indices):
ax.annotate(
f"{ind}",
(residuals[i], regularizations[i]),
)
ax.format(
xformatter="log",
yformatter="log",
)
[10]:
sigma_7^2 : 6.4611e-04
sigma_8^2 : 1.2423e-06
sigma_9^2 : 4.5937e-09
lambda_opt: 1.0819e-05

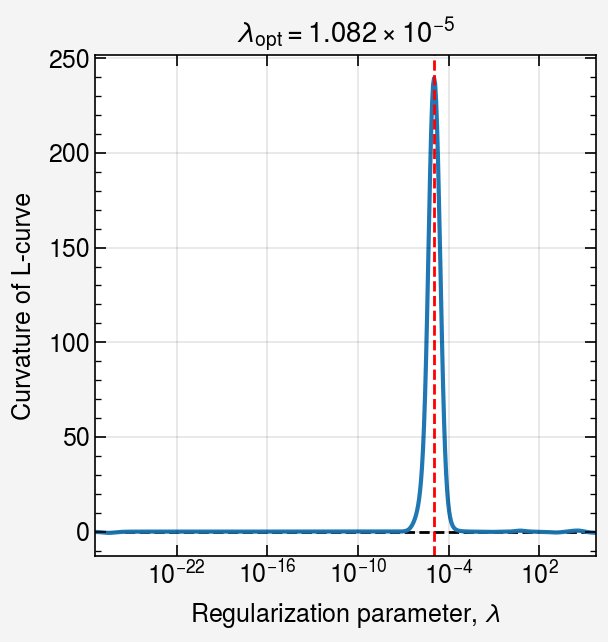

Plot L-curve’s curvature¶
\(\lambda_\mathrm{opt}\) is the regularization parameter that maximizes the curvature of the L-curve.
[11]:
fig, ax = uplt.subplots()
ax = lcurve.plot_curvature(axes=ax)
lambda_opt_text = parse_scientific_notation(f"{svd.lambda_opt:.3e}")
ax.format(
title=f"$\\lambda_\\mathrm{{opt}} = {lambda_opt_text}$",
xformatter="log",
)

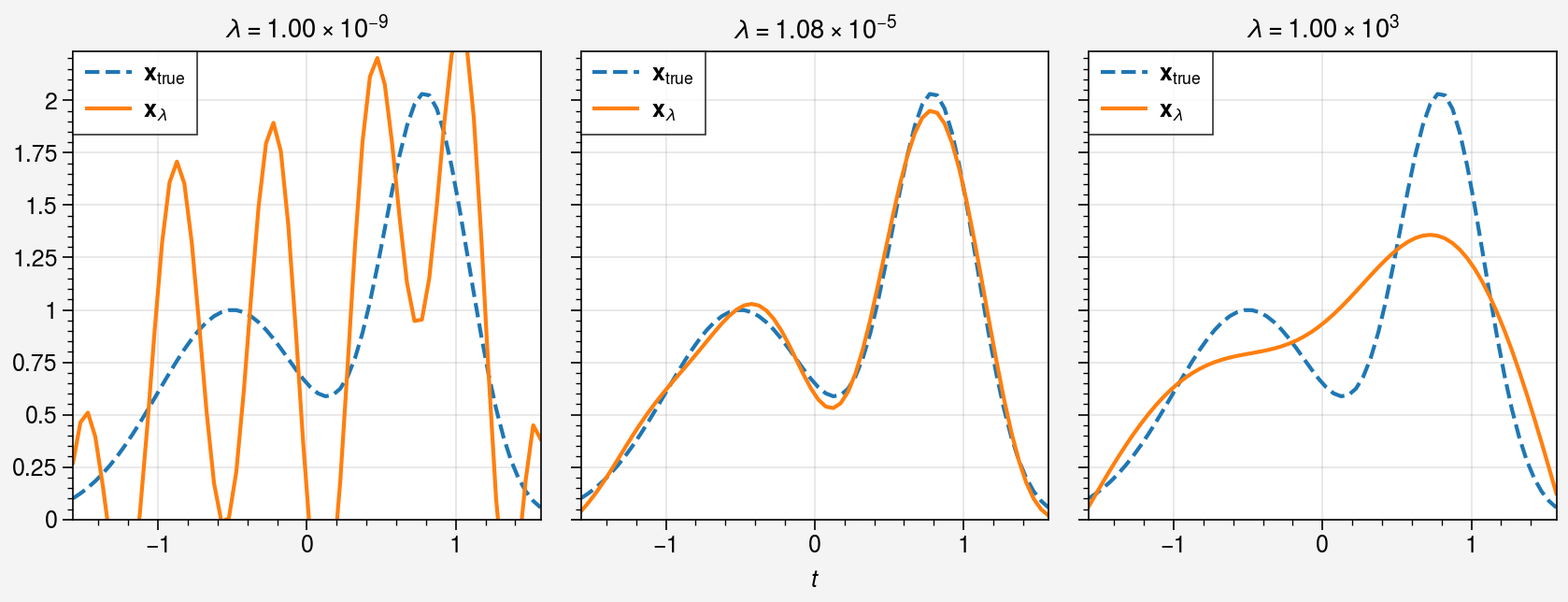

Compare \(\mathbf{x}_\lambda\) with \(\mathbf{x}_\mathrm{true}\)¶
Let us compare solutions at different regularization parameters \(\lambda=10^{-9}\), \(\lambda_\text{opt}\), \(10^3\) with the true solution \(\mathbf{x}_\mathrm{true}\).
[12]:
lambdas = [1.0e-9, svd.lambda_opt, 1.0e3]
fig, axes = uplt.subplots(ncols=3)
for ax, beta in zip(axes, lambdas, strict=False):
ax.plot(t, x_t, "--", label="$\\mathbf{x}_\\mathrm{true}$")
ax.plot(t, svd.solution(beta=beta), label="$\\mathbf{x}_\\lambda$")
ax.legend(loc="upper left", ncols=1)
parsed_lambda = parse_scientific_notation(f"{beta:.2e}")
ax.format(title=f"$\\lambda = {parsed_lambda}$")
axes.format(
ylim=(0, x_t.max() * 1.1),
xlabel="$t$",
)
We can see that the solution at \(\lambda < \lambda_\mathrm{opt}\) is perturbed by noise, while the solution at \(\lambda > \lambda_\mathrm{opt}\) is smoothed too much.

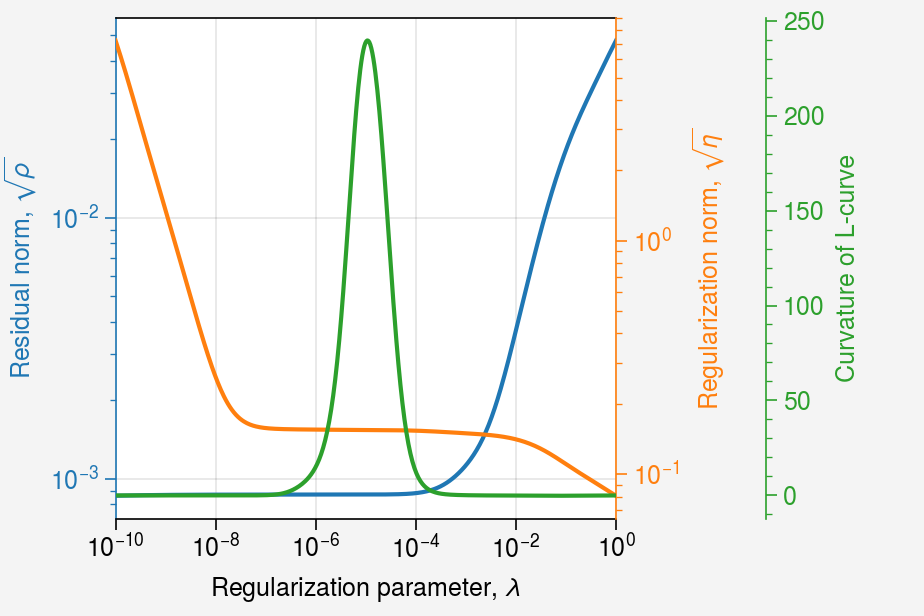

Plot norms and curvature as a function of \(\lambda\)¶
Let us plot the residual norm \(\sqrt{\rho}\) and the regularization norm \(\sqrt{\eta}\) as a function of \(\lambda\). Additionally, we plot the curvature of the L-curve as a function of \(\lambda\).
[13]:
fig, ax1 = uplt.subplots()
ax2 = ax1.alty(color="C1")
ax3 = ax1.twinx(
yloc=("axes", 1.3),
ycolor="C2",
label="Curvature of L-curve",
)
# calculation of the values
lambdas = np.logspace(-10, 0, num=500)
rhos = [svd.residual_norm(beta) for beta in lambdas]
etas = [svd.regularization_norm(beta) for beta in lambdas]
kappa = [lcurve.curvature(svd, beta) for beta in lambdas]
# plot lines
ax1.loglog(lambdas, rhos, color="C0")
ax2.loglog(lambdas, etas, color="C1")
ax3.semilogx(lambdas, kappa, color="C2")
ax1.autoscale(enable=True, axis="x", tight=True)
ax2.autoscale(enable=True, axis="x", tight=True)
ax3.autoscale(enable=True, axis="x", tight=True)
# format axes
ax1.format(
xlabel="Regularization parameter, $\\lambda$",
ylabel="Residual norm, $\\sqrt{\\rho}$",
ycolor="C0",
xformatter="log",
yformatter="log",
)
ax2.format(
ylabel="Regularization norm, $\\sqrt{\\eta}$",
yformatter="log",
)
\(\sqrt{\rho}\) is monotonically increasing with \(\lambda\), while \(\sqrt{\eta}\) is monotonically decreasing with \(\lambda\). This behavior is consistent with the theory of the L-curve criterion.
The curvature of the L-curve is maximized at the center region where both are flat.
Check the relative error¶
The relative error between the solution \(\mathbf{x}_\lambda\) and the true solution \(\mathbf{x}_\mathrm{true}\) is defined as follows:
Let us seek the minimum \(\epsilon_\mathrm{rel}\) as a function of \(\lambda\).
[14]:
from scipy.optimize import minimize_scalar
X_T_NORM = np.linalg.norm(x_t, axis=0)
def relative_error(
log_lambda: float,
x_t: np.ndarray = x_t,
x_t_norm: float = X_T_NORM,
svd: SVD = svd,
) -> float:
"""Calculate relative error."""
beta = 10**log_lambda
sol = svd.solution(beta=beta)
return np.linalg.norm(x_t - sol, axis=0) / x_t_norm
# minimize relative error
bounds = -10, -1
res = minimize_scalar(
relative_error,
bounds=bounds,
method="bounded",
args=(x_t, X_T_NORM, svd),
options={"xatol": 1.0e-10, "maxiter": 1000},
)
# obtain minimum relative error and lambda
error_min = res.fun
lambda_min = 10**res.x
print(f"minimum relative error: {error_min:.2%} at lambda = {lambda_min:.4g}")
minimum relative error: 4.40% at lambda = 0.0001473

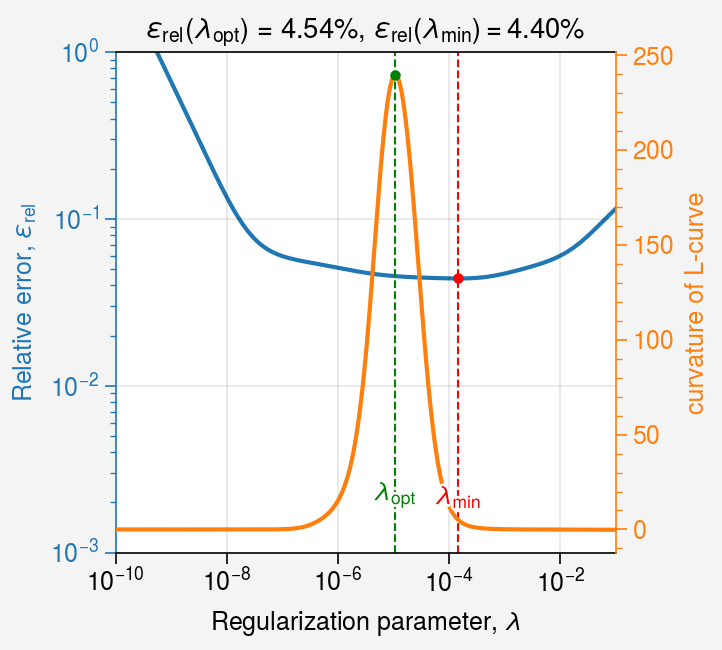

Let us plot the relative error and curvature as a function of \(\lambda\).
[15]:
# set regularization parameters
num = 500
lambdas = np.logspace(*bounds, num=num)
# calculate errors and curvatures
errors = np.asarray([relative_error(log_lambda) for log_lambda in np.linspace(*bounds, num=num)])
kappa = np.asarray([lcurve.curvature(svd, beta) for beta in lambdas])
# create figure
fig, ax1 = uplt.subplots()
ax2 = ax1.alty(color="C1")
# plot errors and curvatures
ax1.loglog(lambdas, errors, color="C0", zorder=0)
ax2.semilogx(lambdas, kappa, color="C1", zorder=0)
# plot minimum error vertical line and point
ax1.axvline(lambda_min, color="r", linestyle="--", linewidth=0.75)
ax1.scatter(lambda_min, error_min, color="r", marker="o", s=10, zorder=2)
ax2.text(
lambda_min,
10,
"$\\lambda_\\mathrm{min}$",
color="r",
horizontalalignment="center",
verticalalignment="bottom",
border=True,
zorder=5,
)
# plot maximum curvature vertical line and point
assert svd.lambda_opt is not None
ax1.axvline(
svd.lambda_opt,
color="g",
linestyle="--",
linewidth=0.75,
)
ax2.scatter(
svd.lambda_opt,
lcurve.curvature(svd, svd.lambda_opt),
color="g",
marker="o",
s=10,
zorder=2,
)
ax2.text(
svd.lambda_opt,
10,
"$\\lambda_\\mathrm{opt}$",
color="g",
horizontalalignment="center",
verticalalignment="bottom",
border=True,
zorder=5,
)
ax1.autoscale(enable=True, axis="x", tight=True)
ax2.autoscale(enable=True, axis="x", tight=True)
# format axes
ax1.format(
ycolor="C0",
ylim=(1.0e-3, 1),
xlabel="Regularization parameter, $\\lambda$",
ylabel="Relative error, $\\epsilon_\\mathrm{rel}$",
xformatter="log",
yformatter="log",
)
ax2.format(
ylabel="curvature of L-curve",
)
error_opt = relative_error(np.log10(svd.lambda_opt))
ax1.format(
title=f"$\\epsilon_\\mathrm{{rel}}(\\lambda_\\mathrm{{opt}})$ = {error_opt:.2%}, "
+ f"$\\epsilon_\\mathrm{{rel}}(\\lambda_\\mathrm{{min}}) = ${error_min:.2%}"
)

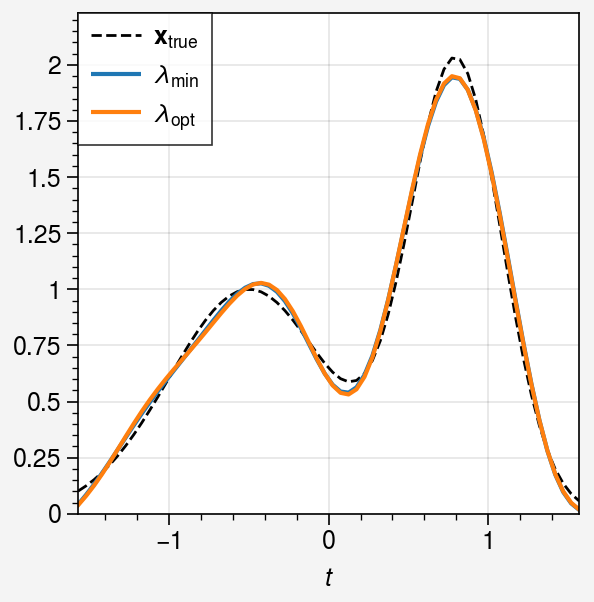

Compare the solution at \(\lambda_\mathrm{opt}\) with \(\lambda_\mathrm{min}\)¶
\(\lambda_\mathrm{min}\) is the regularization parameter that minimizes the relative error.
[16]:
fig, ax = uplt.subplots()
ax.plot(t, x_t, "k--", label="$\\mathbf{x}_\\mathrm{true}$", linewidth=1.0)
ax.plot(t, svd.solution(lambda_min), label="$\\lambda_\\mathrm{min}$")
ax.plot(t, sol, label="$\\lambda_\\mathrm{opt}$")
ax.legend(ncols=1)
ax.format(
xlabel="$t$",
ylim=(0, x_t.max() * 1.1),
)

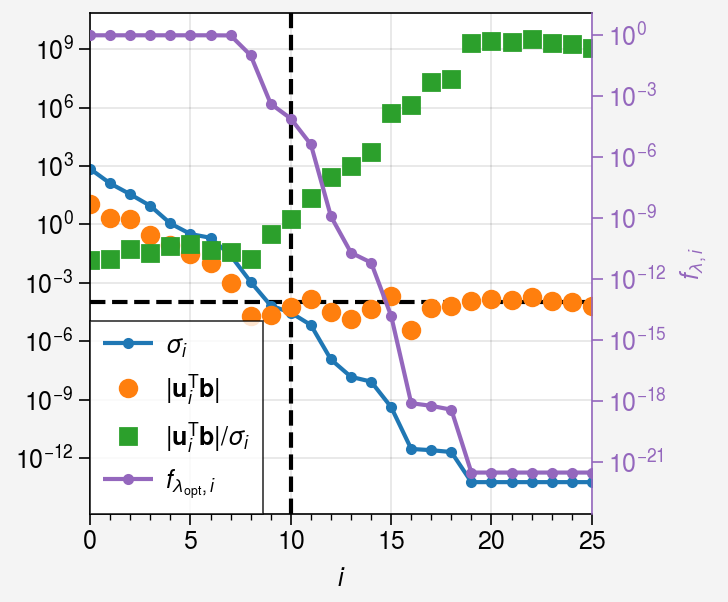

Discrete Picard Plot¶
Discrete Picard Condition[1]
The data vector \(\mathbf{b}\) satisfies the discrete Picard condition (DPC) if the data space coefficients \(|\mathbf{u}_i^\mathsf{T}\mathbf{b}|\) decay faster than the singular values \(\sigma_i\).
In ill-posed problems, we find that the DPC holds initially and then fails at some point \(i_\mathrm{DPC}\), where the data become dominated by errors (noise). If this is the case, and if the regularization parameter is accurately selected, then the regularized solution should provide a valid solution. Examining \(i_\mathrm{DPC}\) provides a method of characterizing the ill-posedness of the problem.
[17]:
ub = np.abs(svd.U.T @ b)
fig, ax1 = uplt.subplots()
ax2 = ax1.twinx(ycolor="C4", ylabel="$f_{\\lambda, i}$")
# DP plot
(h1,) = ax1.semilogy(svd.s, ".-", label="$\\sigma_i$")
(h2,) = ax1.semilogy(ub, "o", label="$|\\mathbf{u}_i^\\mathsf{T}\\mathbf{b}|$")
(h3,) = ax1.semilogy(ub / svd.s, "s", label="$|\\mathbf{u}_i^\\mathsf{T}\\mathbf{b}|/\\sigma_i$")
ax1.axhline(1e-4, color="k", linestyle="--", zorder=0)
ax1.axvline(10, color="k", linestyle="--", zorder=0)
ax1.format(xlabel="$i$", yformatter="log", xlim=(0, 25))
# filter plot
assert svd.lambda_opt is not None
(h4,) = ax2.semilogy(
svd.filter(svd.lambda_opt),
".-",
color="C4",
label=r"$f_{\lambda_\mathrm{opt}, i}$",
)
ax2.format(
yformatter="log",
)
fig.legend(
[h1, h2, h3, h4],
ncols=1,
ref=ax1,
loc="lower left",
);
The vertical dashed line in the above figure marks the beginning of \(|\mathbf{u}_i^\mathsf{T}\mathbf{b}| < \sigma_i\), and the horizontal dashed line represents the noise level. DPC is satisfied for \(i < i_\mathrm{DPC} \simeq 10\). We confirm that the filter factor \(f_{\lambda_\mathrm{opt}, i}\), the \(\lambda_\mathrm{opt}\) of which is selected by the L-curve criterion, starts to decrease around \(i_\mathrm{DPC}\). This behavior works as a filter to suppress the noise component and yields a physically meaningful solution.
